Webhooks (Legacy)

Legacy Notice: Legacy extensions are no longer actively maintained and will not receive feature updates or enhancements.

For new projects, use Webhooks.

CometChat legacy webhooks enable real-time event-driven communication with your system. They allow you to receive HTTP POST requests whenever specific events occur—such as sending a message or a user coming online. These webhooks are ideal for integrating external services like SMS, email, analytics, or auditing systems.

---

Webhook Endpoint Requirements

To ensure reliable delivery and security, your webhook endpoint must meet the following requirements:

1. HTTPS required: Your endpoint must use HTTPS to ensure secure data transmission.
2. Public accessibility: It must be accessible from the public internet.
3. Support for POST requests: The endpoint must accept HTTP POST requests with a Content-Type of application/json.
4. Immediate acknowledgment: Your server must respond with an HTTP 200 OK status quickly to acknowledge receipt.

---

Security

It is strongly recommended to use Basic Authentication to protect your webhook endpoints.

Header format

When enabled, every webhook request from CometChat will include the following HTTP header:

Authorization: Basic <Base64-encoded-credentials>

Set your username and password while configuring the webhook on the CometChat dashboard.

---

Legacy webhook events

Below are the legacy webhook events supported by CometChat:

Event	Description
before_message	Triggered when a message is in-flight—just before it is processed by CometChat.
after_message	Triggered after a message has been successfully sent.
message_delivery_receipt	Triggered when a message is marked as delivered to a user.
message_read_receipt	Triggered when a message is marked as read by the recipient.
user_connection_status_change	Triggered when a user connects or disconnects from the CometChat platform.

---

Manage legacy webhooks

You can manage and configure legacy webhooks in CometChat either from the dashboard UI or programmatically via Management APIs.

Option 1: Manage from the dashboard

Steps

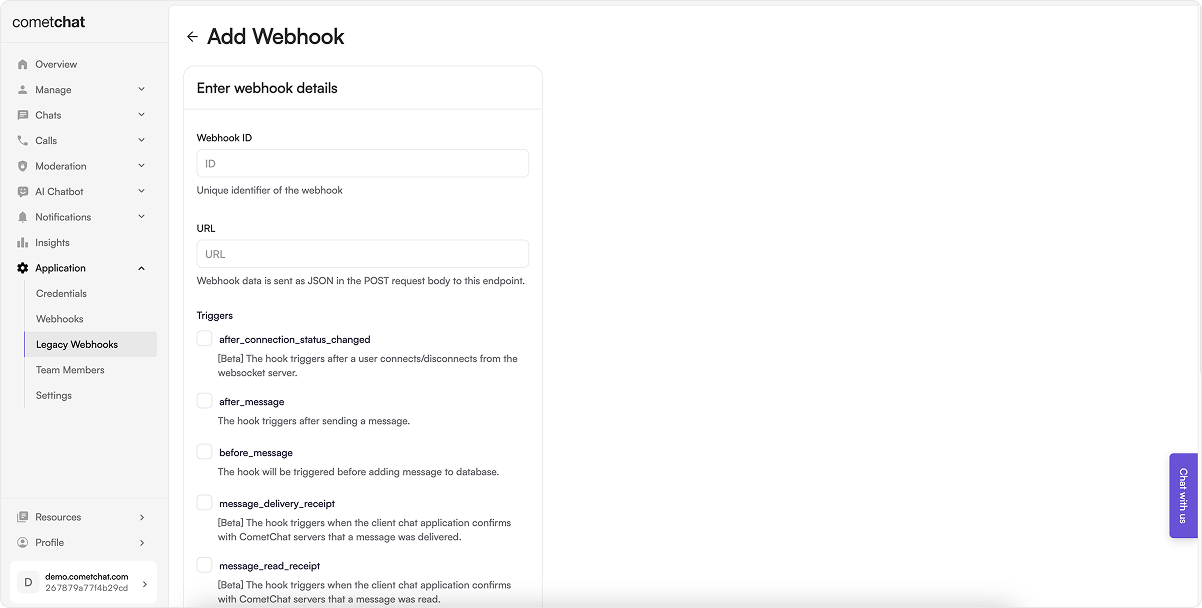

1. Log in to your CometChat Dashboard and select your app.
2. Go to Settings > Legacy Webhooks from the left menu.
3. Click on Add New Webhook.
4. Fill in the configuration:
   • Webhook ID: A unique identifier for your webhook.
   • URL: Endpoint where event payloads will be delivered.
   • Triggers: Select the events you want to receive.
   • Security: (Recommended) Enable authentication.
5. Enable the webhook.
6. Save the configuration.

Option 2: Manage via Management APIs

CometChat also provides Management APIs to automate webhook and trigger management.

Webhook management endpoints

Operation	API Reference
Create a new webhook	Create Webhook
Update an existing webhook	Update Webhook
List all webhooks	List Webhooks
Get a webhook by ID	Get Webhook
Delete a webhook	Delete Webhook

Trigger management endpoints

Operation	API Reference
Add triggers to a webhook	Add Triggers
List all triggers of a webhook	List Triggers
Remove triggers from a webhook	Remove Triggers

---

Event payloads

Message events

before_message

The endpoint will be triggered when a message is in-flight.

{
    "trigger": "before_message",
    "data": {
        "conversationId": "cometchat-uid-4_user_cometchat-uid-5",
        "sender": "cometchat-uid-5",
        "receiverType": "user",
        "receiver": "cometchat-uid-4",
        "category": "message",
        "type": "text",
        "data": {
            "text": "Hi Webhook Test",
            "entities": {
                "sender": {
                    "entity": {
                        "uid": "cometchat-uid-5",
                        "name": "John Paul",
                        "avatar": "https://assets.cometchat.io/sampleapp/v2/users/cometchat-uid-5.webp",
                        "status": "offline",
                        "role": "default"
                    },
                    "entityType": "user"
                },
                "receiver": {
                    "entity": {
                        "uid": "cometchat-uid-4",
                        "name": "Susan Marie",
                        "avatar": "https://assets.cometchat.io/sampleapp/v2/users/cometchat-uid-4.webp",
                        "status": "offline",
                        "role": "default"
                    },
                    "entityType": "user"
                }
            }
        },
        "sentAt": 1586435925,
        "updatedAt": 1586435925,
    },
    "appId": "167*****1529",
    "webhook": "send-message"
}

after_message

The endpoint will be triggered after a message is sent.

{
    "trigger": "after_message",
    "data": {
        "id": "1",
        "conversationId": "cometchat-uid-4_user_cometchat-uid-5",
        "sender": "cometchat-uid-5",
        "receiverType": "user",
        "receiver": "cometchat-uid-4",
        "category": "message",
        "type": "text",
        "data": {
            "text": "Hi Webhook Test",
            "entities": {
                "sender": {
                    "entity": {
                        "uid": "cometchat-uid-5",
                        "name": "John Paul",
                        "avatar": "https://assets.cometchat.io/sampleapp/v2/users/cometchat-uid-5.webp",
                        "status": "offline",
                        "role": "default"
                    },
                    "entityType": "user"
                },
                "receiver": {
                    "entity": {
                        "uid": "cometchat-uid-4",
                        "name": "Susan Marie",
                        "avatar": "https://assets.cometchat.io/sampleapp/v2/users/cometchat-uid-4.webp",
                        "status": "offline",
                        "role": "default"
                    },
                    "entityType": "user"
                }
            }
        },
        "sentAt": 1586435925,
        "updatedAt": 1586435925,
    },
    "appId": "167*****1529",
    "webhook": "send-message"
}

message_delivery_receipt

The endpoint will be triggered when a message is marked delivered.

{
  "trigger": "message_delivery_receipt",
  "appId": "167*****1529",
  "origin": {
	  "platform": "WEBSOCKET"
  },
  "chatAPIVersion?": "3.0",
  "region?": "us|eu|other",
  "webhook": "webhook_name",
	"data": {
    "messageId": "MESSAGE_ID",
    "receiptType": "delivered",
    "deliveredAt": 1673017183,
    "messageSender":"messageSenderUID",
    "receiptSender":"receiptSenderUID",
    "receiptReceiver":"uid|guid",
    "receiverType": "user|group"
  }
}

message_read_receipt

The endpoint will be triggered when a message is marked read.

{
  "trigger": "message_read_receipt",
  "appId": "167*****1529",
  "origin": {
    "platform": "WEBSOCKET"
  },
  "chatAPIVersion?": "3.0",
  "region?": "us|eu|other",
  "webhook": "webhook_name",
	"data": {
    "messageId": "MESSAGE_ID",
    "receiptType": "read",
    "readAt": 1673017183,
    "messageSender":"messageSenderUID",
    "receiptSender":"receiptSenderUID",
    "receiptReceiver":"uid|guid",
    "receiverType": "user|group"
  }
}

User-related events

user_connection_status_change

The endpoint will be triggered when a users logs in or logs out of CometChat.

{
  "trigger": "after_connection_status_changed",
  "appId": "167*****1529",
  "origin": {
    "platform": "API|MGNT-API|WEBSOCKET|WEBRTC"
  },
  "chatAPIVersion?": "3.0",
  "region?": "us|eu|other",
  "webhook": "webhook_name",
  "data": {
    "user": {
      "uid": "uid of the user",
      "status": "online|offline",
      "status_updated": true,
      "status_updated_at": "unixtimestamp in millisec"
    },
    "event": {
      "type": "connected|disconnected",
      "at": "unixtimestamp in millisec",
      "event_for": {
        "connected_at": "unixtimestamp in millisec",
        "cometchat_device_id": "unique device id used by cometchat to identify the device(random string)",
        "session_id": "unique id to indetify the unique session of users",
        "platform": "android|ios|web"
      }
    },
    "connections": [
      {
        "connected_at": "unixtimestamp in millisec",
        "cometchat_device_id": "unique device id used by cometchat to identify the device(random string)",
        "session_id": "unique id to indetify the unique session of users",
        "platform": "android|ios|web"
      },
      {
        "connected_at": "unixtimestamp in millisec",
        "cometchat_device_id": "unique device id used by cometchat to identify the device(random string)",
        "session_id": "unique id to indetify the unique session of users",
        "platform": "android|ios|web"
      }
    ]
  }
}
